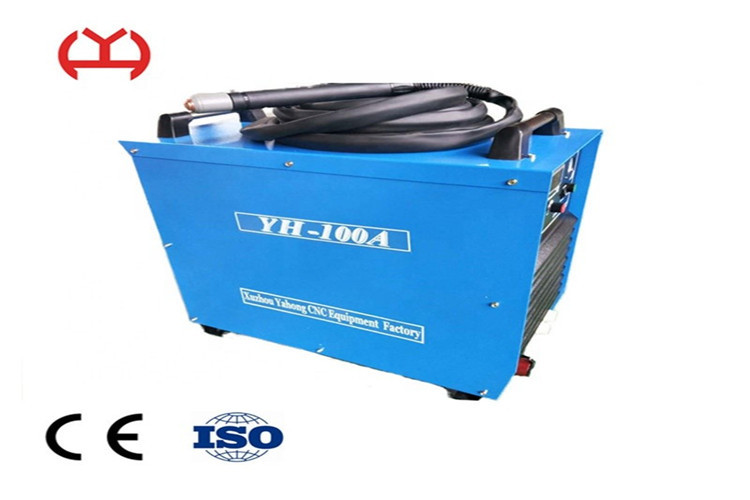

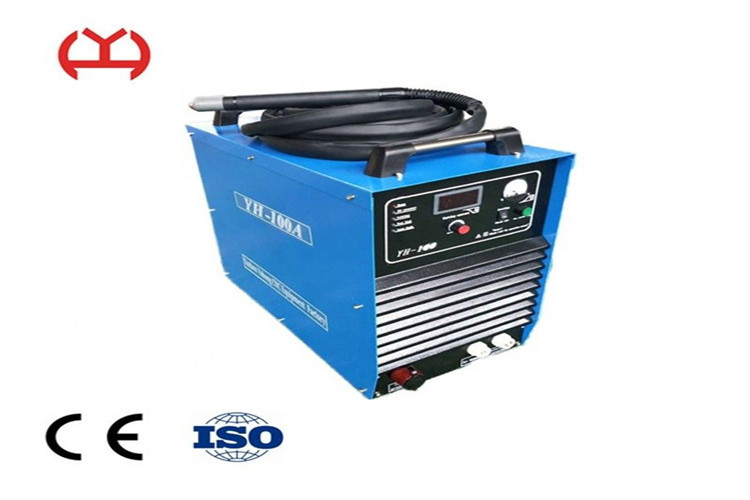

    Multiple Function Plasma Energy Source , Microwave Plasma Generator


    Plasma Power Supply For CNC Cutter


    1.Main Technical Performance Indexes of products


    Input voltage

    3*380(50Hz)±10%

    Input power

    45KVA

    Cutting power current

    30-200A

    Temporary load rate

    200A/100%

    Cutting thickness

    according to the material u cut

    Perforation thickness

    25mm

    Quality cutting thickness

    45mm

    Max cutting thickness

    55mm

    Cutting gas

    air

    Gas flow

    150L/min

    Gas pressure

    0.5MPa

    Cooling method

    Water cooling

    Power source weight

    90Kg

    Outline dimension

    L69*W37*H81cm


    2.Unique cutting functions:


    1.Adopt international advanced full bridge soft switching technology


    2.Plasma power supply current is 30A - 200A stepless adjustable


    3.Good cut surface vertical degree, carbon steel cutting can be within 3 degree


    4.Independent research and development of the cutting torch, strong ability to penetrate, with good vertical degree


    5.Built-in overcurrent, overvoltage, air pressure and hydraulic pressure multiple protection

    6.Suitable for CNC cutting machine and robot supporting use

    7.100% temporary load rate, can work long hours
